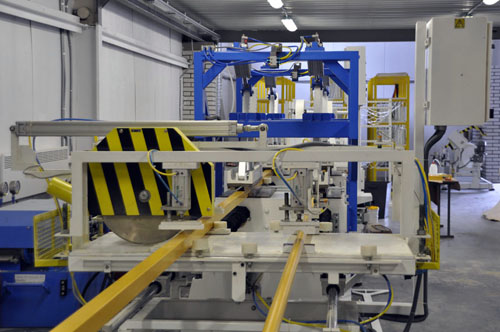

Automatic Section Cutter


Image 01 Image 02 Image 03

The company is well reckoned as one of the key manufacturers and suppliers of high quality Automatic Section Cutter. Pultrusion Machine Automatic Section Cutter is installed between the Pultrusion Machine & Roller table. Use of finest quality steel like, channel, angle or pipe ensures the high performance of our Automatic Automatic Section Cutter. Pultrusion Machine Automatic Section Cutter provided by us is ideal to cut the Pultruded profiles from the Pultrusion machines at predefined lengths. We offer Pultrusion Machine Automatic Section Cutter within the specified time frame at reasonable prices.
  • Fabricated form structural steel like, channel, angle or pipe

  • Working on Principal of Flying Cut-Off Saw
  • Electrodeposited Diamond Cut-Off Disc of Ø 300 / 400 mm
  • Operating by 1.5 kW / 2.0 H.P Motor
  • Section Clamping, Cutter Troll Movement & Cut-Off Blade Movement by Pneumatics
  • Auto / Manual Operating mode using PLC
  • Compressed air require: 2.0 – 3.0 CFM at 3.5 – 5.0 kg/cm² Pressure
  • Electric requirement: 1.5 kW.


Approximate overall dimension

Length Width 1850mm
1750mm 1850mm 1700mm
